Toothpick Packaging Machine

FOB Reference Price:Get Latest Price
US $5,300-6,000 / Sets | 1 Set/Sets 1 set (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other, Packing Machine
Condition:
New
Application:
Chemical, Commodity, Medical
Packaging Type:
Bags, Film, Foil, Pouch, Bag
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
1.36kw, three-phase four-wire system 380V or single phase 220V
Power:
1.36(kw), 1.36kw (plus function of stir: 1.42kw)
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Huihe
Model Number:
Toothpick Packaging Machine DXDYQ240
Weight:
230(kg)
Dimension(L*W*H):
695*770*1580mm
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Toothpick Packaging Machine:
for paste and liquid products
Packing speed:
55~100pcs(bag/min)
Measuring range:
single packing
Bag length:
50-115mm
Bag width:
30-85mm
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed into one standard export wooden case
Port
Shanghai
Lead Time :
5-7days

DXDYQ240  Toothpick Packaging Machine



Features

1. Bag-making system adopts step motor with high precision(error is less than 1mm).
2. Controller adopts chinese displaying, can see the working conditions directly, easy to adjust bag length, counting and alerting when no paper.

3. Heating sealer with 4 sides of heating control, each sealing side temperature can be adjusted separately with good heatbalance to ensure the seal in good quality, suit for a variety of packaging materials. Heat up quickly, can shorter the time of heating up.

4. With intelligent photoelectric controller system. Good visibility with side open protective platens, operate safely.
5. Feeding system adopt rotate twelve working position with 20mm stainless steel, human feeding, auto open close type feeding, humanity design, easy to feed, suit for various toothpick or the same plastic products and toys.
6.  With wobble plate adjust set, can adjust packing capacity when operation, reduce the loss of material,improve working efficiency.

7. Z series adopt mechanical rotate cutter, with fast packing, can adjust the cutter position when operation, in practice the packing speed can reach 95 bag/min,

8. This machine is suitable for the packing of toothpicks, bag can choose from 3-side or 4-side seal according to customer needs, according to customer feedback, the speed is 72 bag/min if one person operate. This machine speed can be choose from 55-100 bag/min.

9. Unique function of positioning stop, make sure the heat sealer and cutter in open position when stop in any state. Avoid the packaging materials and heat seal parts from scalding.

10. Can install printer according to customer needs, can print date number and batch number,can also print product name and specification with Chinese and English.





Specification



Model No.DXDYQ-240
Bag size(mm):L50~115  W30~85
Packing speed45-100bag/min
Range of measurement:single packing
Power380V or 220V or made accordingly    1.64KW
Packing materialAll kinds of composite materials or Paper-plastic membrane
Weight230kg
Dimension695*770*1580mm
Bag typetriangle
Packing material diameter(mm) ≤300



SAM_7368SAM_7375

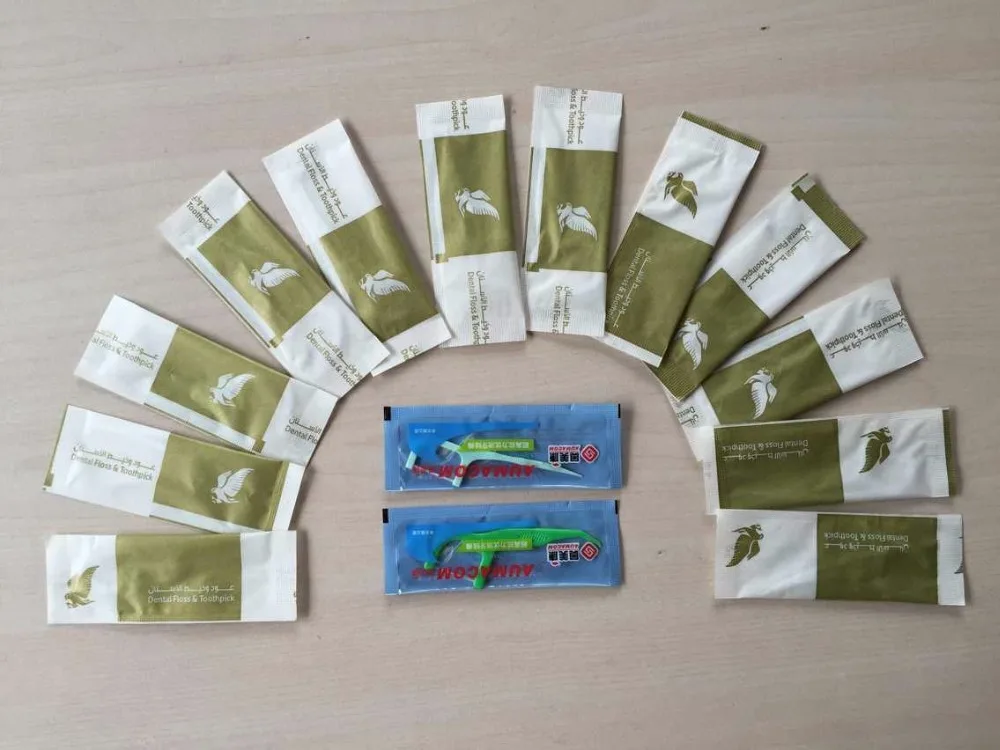

Our packing sample

IMG_2974

_20180508180837_20180508180849



After Sales Service:

1.Guaranty: One Year.

2.One set of consumable accessories will be provided with the machine.

3.Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.

4.All spare parts are always available for delivery.

5.Manual is in English.



Installation/ Training

If really dont know how to install and operate after showing the video and telephone instruction, you can ask for installation from us. It must be after shipment till the machine has arrived and factory must be ready equipped with all necessary requirements before booking installation. Our engineers will come to the site for the complete and final installation. During the installation session, a one-day training course will be provided to our customers about operation and maintenance procedure. The following costs should be paid by the buyer, including engineer's all local transportation, accommodation, and air tickets (round trip).



Payment terms

Choose the machine type →  Goods delivery :(FOB,CIF,CFR,EXW)  →  Payment term :30% down payment as for ordering the machine (or 100 % payment that can save time )  →  Confirmed the machine requirement  →   Based on your requested to producing machine→   Though video chat or send machine picture or directly come to inspection in our factory →  Pay the rest of balance 70% → Arrange the  shipment .(If need more technical support ,please contact our services )
