Tablet Packing Machine

FOB Reference Price:Get Latest Price
US $5,100-6,000 / Sets | 1 Set/Sets 1 set (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other
Condition:
New
Application:
Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Film, Foil
Packaging Material:
Plastic
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V or 220V or made accordingly
Power:
1100W
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Huihe
Model Number:
Refined Edible Oil Packing Machine DXDP240
Weight:
190KG, 190kg
Dimension(L*W*H):
625*751*1558mm
Certification:
CE;ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Tablet Packing Machine:
for a variety of packaging materials
Packing speed:
40-60bag/min
Bag length:
30-170mm
Bag width:
30-120mm
Packing material:
(PET/PE), (Paper/PE), (PET/AL/PE), (OPP/PE)
Supply Ability
Supply Ability:
160 Set/Sets per Month
Packaging & Delivery
Packaging Details
Packed into one standard export wooden case
Port
Shanghai
Lead Time :
5-7days

DXDP240 Tablet Packing Machine



Description

1.Can finish the function of bag making, measuring,filling,sealing,cutting and counting.

2.Controlled by computer and step motor pull bag, flexible bag length cutting, operator

needn't to adjust the unloading working, saving time and saving films.

3.Separate PID control to temperature, suitable for various packing materials.

4. Option device: ribbon printer, filling device, gas-exhaust device, horizontal sealing punching device, rotary cutter, small cutter, former beat device,

batch pneumatic cutter.

5.Simple driven system, working more stable and easy to maintain.

6. Packing material:(PET/PE), (Paper/PE), (PET/AL/PE), (OPP/PE)

7. The machine is with programmable controller as well as an English display screen that makes it

easy to operate and convenient.

8.Photoelectric digital tracking system makes it possible to set the length of package and when

packing film with cursor mark is used, and the machine will be automatic stopped if it can not track

the mark after three bags.



Feature

LCD screen, intelligent control, failure warning, Solid intelligence double road temperature control,

The design of circulatory wind-electric cabinet for 24 hours working, 304 stainless steel





Specification

Model No. DXDP-240
Packing speed 40-60bag/min
Range of measurement  According to table size
Bag size W:30-120mm  L:30-170mm

 Bag size can be lengthened according to customer requirement

Voltage 380V or 220V or made accordingly
Power 1400W
Dimension 625*751*1558mm
Packing material (PET/PE), (Paper/PE), (PET/AL/PE), (OPP/PE)

Method of Measurement

 Piece counting type
Weight 190kg

 With free spare parts



After Sales Service:

1.Guaranty: One Year.

2.One set of consumable accessories will be provided with the machine.

3.Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.

4.All spare parts are always available for delivery.

5.Manual is in English.



Installation/ Training

If really dont know how to install and operate after showing the video and telephone instruction, you can ask for installation from us. It must be after shipment till the machine has arrived and factory must be ready equipped with all necessary requirements before booking installation. Our engineers will come to the site for the complete and final installation. During the installation session, a one-day training course will be provided to our customers about operation and maintenance procedure. The following costs should be paid by the buyer, including engineer's all local transportation, accommodation, and air tickets (round trip).



Payment terms

Choose the machine type →  Goods delivery :(FOB,CIF,CFR,EXW)  →  Payment term :30% down payment as for ordering the machine (or 100 % payment that can save time )  →  Confirmed the machine requirement  →   Based on your requested to producing machine→   Though video chat or send machine picture or directly come to inspection in our factory →  Pay the rest of balance 70% → Arrange the  shipment .(If need more technical support ,please contact our services )



Suit for tablet packing




Our packing sample

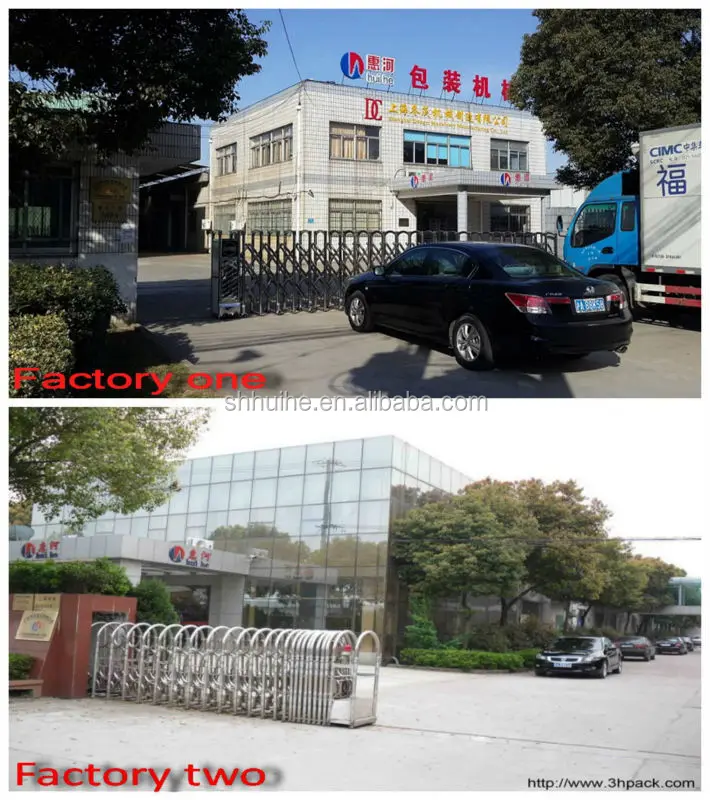

Welcome to our factory !

_



.jpg





Our certificate

CE_
