FFS Powder Packing Machine

FOB Reference Price:Get Latest Price
US $3,500-6,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Other, Packing machine
Condition:
New
Application:
Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Film, Foil, Pouch
Packaging Material:
Paper, Plastic
Automatic Grade:
Automatic
Driven Type:
Mechanical
Voltage:
220V;50Hz
Power:
1.75kw
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
Huihe
Model Number:
DXDF60C
Weight:
230kg
Dimension(L*W*H):
665*770*1640mm
Certification:
CE;ISO
After-sales Service Provided:
Engineers available to service machinery overseas
FFS Powder Packing Machine:
for powder products
Packing speed:
40-60(bag/min)
Measuring Range:
1-80ml
Bag length:
50-145mm
Bag width:
30-100mm
Packing material:
Laminated film
Supply Ability
Supply Ability:
160 Set/Sets per Month 40set/week
Packaging & Delivery
Packaging Details
Packed into one standard export wooden case
Port
Shanghai
Lead Time :
7-10days

DXDF60C   FFS Powder Packing Machine



Feature

1. With the function auto filling,measuring,bag forming,sealing and cutting. Bag-making system adopts step motor with high precision(error is less than 1mm).
2. Controller adopts Chinese or English displaying, can see the working conditions directly.
3. Heating sealer with 4 sides of heating control, each sealing side temperature can be adjusted separately with good heat-balance to ensure the seal in good quality, suit for a variety of packaging materials.
4. With intelligent photoelectric controller system.
5. Good visibility with side-open protective platens, operate safely.
6. Metering screw is drived by step motor, so that can get higher repeat precision.
7. adopt the newest hopper sets, easy to adjust and clean, no need adjust again after clean, so that can improve working efficiency
8. Model DXDF-60C adopt undercutting tool, Model DXDF-60Z adopt revolving knife, with fast packing speed, can adjust cutter position when machine working.
9. This machine is suitable for the packing of powder products, bag can choose from 3-side or 4-side seal according to customer needs.
10. Ribbon printer is addable according to customer needs, which can print one to three lines letter, date of produce and batch number.



Specification

Model No.:DXDF60C
Packing speed 40-60(bag/min)
Measuring Range 1-80ml
Bag size(mm)L:50-145 W:30-100(mm)
Voltagethree-phase four-wire system 380V or single phase 220V
Power1.75kw
Machine dimension665×770×1640 or 665×1000×1640(mm)
Packing material All kinds of composite materials
Diameter of packing material ≤300(mm)
Weight 230Kg

With free spare part



After Sales Service

1.Guaranty: One Year.

2.One set of consumable accessories will be provided with the machine.

3.Any question, you can mail/call us at any time. And our most experienced engineers are assigned to give consulting service, and always available for dispatching abroad.

4.All spare parts are always available for delivery.

5.Manual is in English.



Installation/ Training

If really dont know how to install and operate after showing the video and telephone instruction, you can ask for installation from us. It must be after shipment till the machine has arrived and factory must be ready equipped with all necessary requirements before booking installation. Our engineers will come to the site for the complete and final installation. During the installation session, a one-day training course will be provided to our customers about operation and maintenance procedure. The following costs should be paid by the buyer, including engineer's all local transportation, accommodation, and air tickets (round trip).

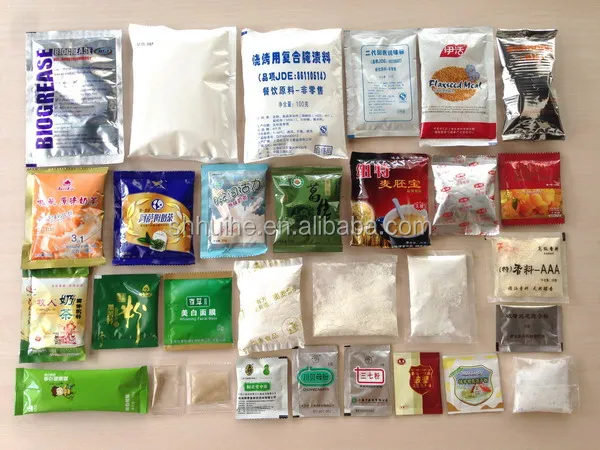

Our packing sample

SAM_5072.jpg SAM_5091.jpg






Payment terms

Choose the machine type →  Goods delivery :(FOB,CIF,CFR,EXW)  →  Payment term :30% down payment as for ordering the machine (or 100 % payment that can save time )  →  Confirmed the machine requirement  →   Based on your requested to producing machine→   Though video chat or send machine picture or directly come to inspection in our factory →  Pay the rest of balance 70% → Arrange the  shipment .(If need more technical support ,please contact our services )
